LM-102TR

LINK-MI LM-102TR Local Adjustable VGA UTP Extender 200m Over Cat5e/6 Cable

Introduction:

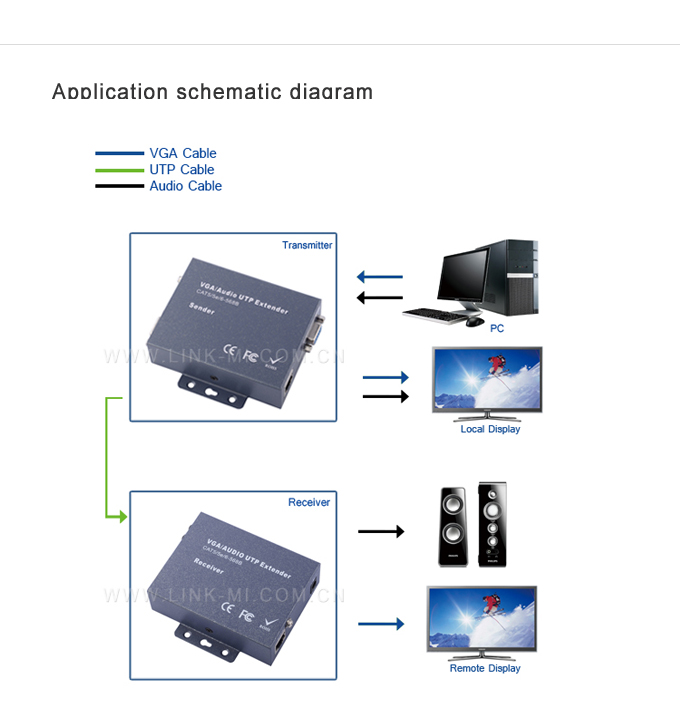

1.Ideal solution for digital signage applications.
2.Supports local and remote VGA monitors.
3.Supports resolutions to 1920x1440.
4.Sharpest and clearest VGA quality over CAT5/UTP-STP cable of any manufacturer.
5.Built-in lightning and ESD surge protection.
6.Available with optional stereo audio
7.Use in-house CAT5/5e/6 phone wiring to locate a monitor remotely.
8.Optional VESA mounting bracket is available for mounting the remote unit to the back of a flat panel monitor.

Description







Specification

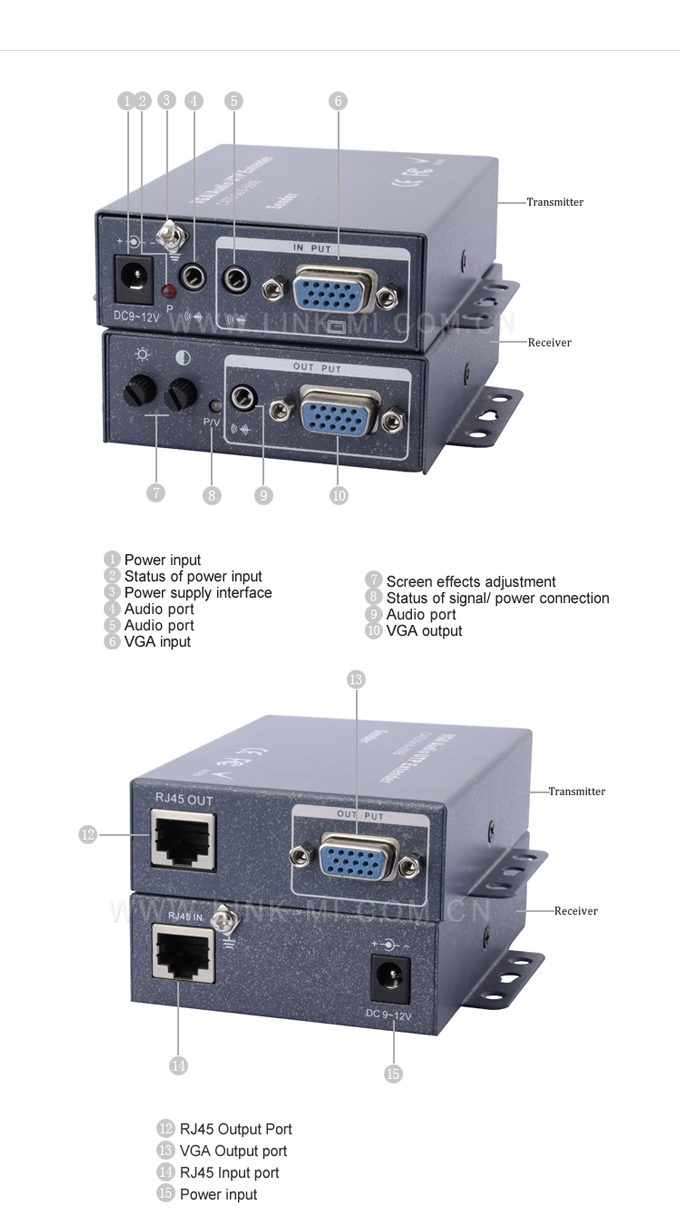

  1. Local Unit

1)    Host Connection

2)    Multiplatform support: Windows 2000/XP/Vista/Windows7/Server 2000/2003/2008, Solaris, Linux, FreeBSD, and MAC OS 9/10.

3)    Male/Female 15-pin HD connector for computer connection.

4)    Optional stereo audio support - 3.5mm stereo plug.

5)    Local Access

6)    Crisp and clear 1920x1440 video resolution.

7)    Female 15-pin HD connector for local VGA monitor.

8)    Optional stereo audio support - 3.5mm stereo jack.

  1. Remote Unit

1)    Supports resolutions up to 1920x1440; refer to the resolution chart below for resolutions at different lengths.

2)    Female 15-pin HD connector.

3)    Optional 3.5mm stereo audio connection.

  1. Video Quality Adjustment

1)    Video quality adjustment for different lengths of CAT5/5e/6 cable is done manually for the video-only extender, and automatically for audio/video or video extender.

  1. Environmental

1)    Operating temperature: 32°F to 100°F (0°C to 38°C).

2)    Storage temperature: -20°F to 140°F (-30°C to 60°C).

3)    Operating and Storage Relative Humidity: 17 - 90% non-condensing RH.

  1. Dimensions

1)    L*W*H (mm): 95*97*28mm(Sender)

                        95*97*28mm(Receiver)

2)    Weight(Kg):0.9KG

  1. Power

1)    220 or 110 VAC at 50 or 60 Hz via AC adapter (Included).

2)    Power Consumption: 6W (each - local and remote unit).

3)    Use the PWR-48V-9V0,6A or PWR-12V-9V0,6A DC-DC power converter to install the local unit in a Telecom environment.

Packing Contents

1. Main Unit. 1 Unit VGA Extender

2. 2pcs Power Adapter

3. 1pcs User Manual
